Software Oriented Architecture (SOA)

BVMTech INC., employs SOA as a software-based integration tier to manage more Huge Data based applications. BVMTech INC. has built a service architecture and uses it to enable integration across disparate technology stacks. For example, we have enabled open interoperation between our C++ and Java technologies via services.

Service-oriented architecture (SOA) is an evolution of distributed computing based on the request/reply design paradigm for synchronous and asynchronous applications. An application's business logic or individual functions are modularized and presented as services for consumer/client applications. What's key to these services is their loosely coupled nature; i.e., the service interface is independent of the implementation. Application developers or system integrators can build applications by composing one or more services without knowing the services' underlying implementations. For example, a service can be implemented either in .Net or J2EE, and the application consuming the service can be on a different platform or language.

Service-oriented architectures have the following key characteristics:

• SOA services have self-describing interfaces in platform-independent XML documents. Web Services Description Language (WSDL) is the standard used to describe the services.
• SOA services communicate with messages formally defined via XML Schema (also called XSD). Communication among consumers and providers or services typically happens in heterogeneous environments, with little or no knowledge about the provider. Messages between services can be viewed as key business documents processed in an enterprise.

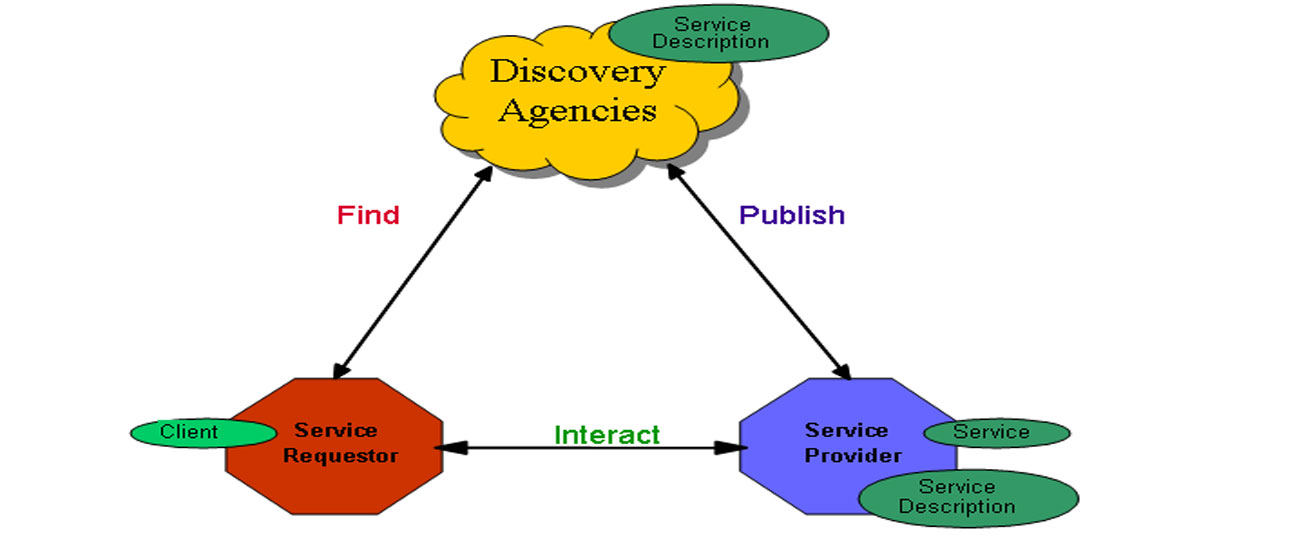

• SOA services are maintained in the enterprise by a registry that acts as a directory listing. Applications can look up the services in the registry and invoke the service. Universal Description, Definition, and Integration (UDDI) is the standard used for service registry.
• Each SOA service has a quality of service (QoS) associated with it. Some of the key QoS elements are security requirements, such as authentication and authorization, reliable messaging, and policies regarding who can invoke services.

Why SOA?

The reality in IT enterprises is that infrastructure is heterogeneous across operating systems, applications, system software, and application infrastructure. Some existing applications are used to run current business processes, so starting from scratch to build new infrastructure isn't an option. Enterprises should quickly respond to business changes with agility; leverage existing investments in applications and application infrastructure to address newer business requirements; support new channels of interactions with customers, partners, and suppliers; and feature an architecture that supports organic business. SOA with its loosely coupled nature allows enterprises to plug in new services or upgrade existing services in a granular fashion to address the new business requirements, provides the option to make the services consumable across different channels, and exposes the existing enterprise and legacy applications as services, thereby safeguarding existing IT infrastructure investments
